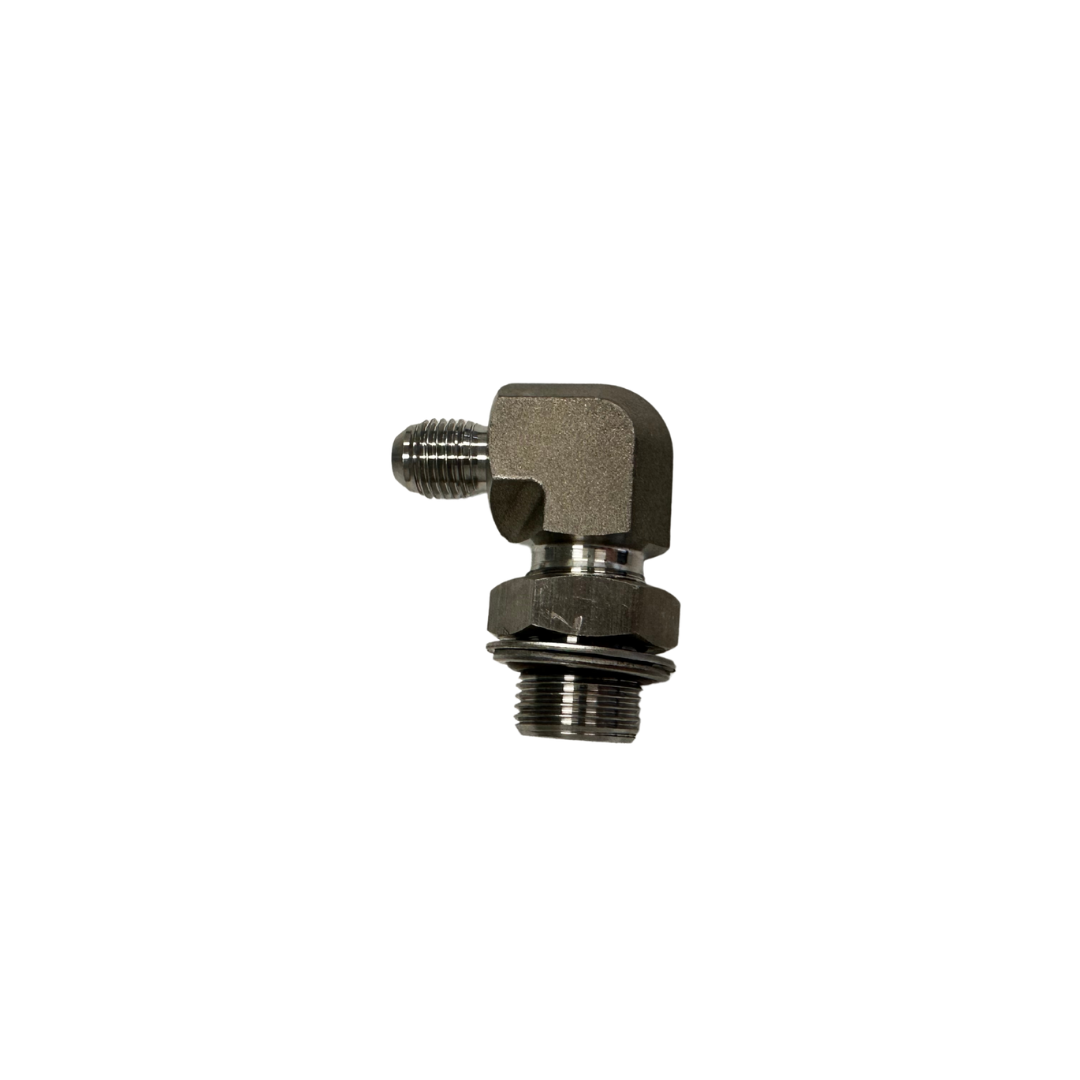

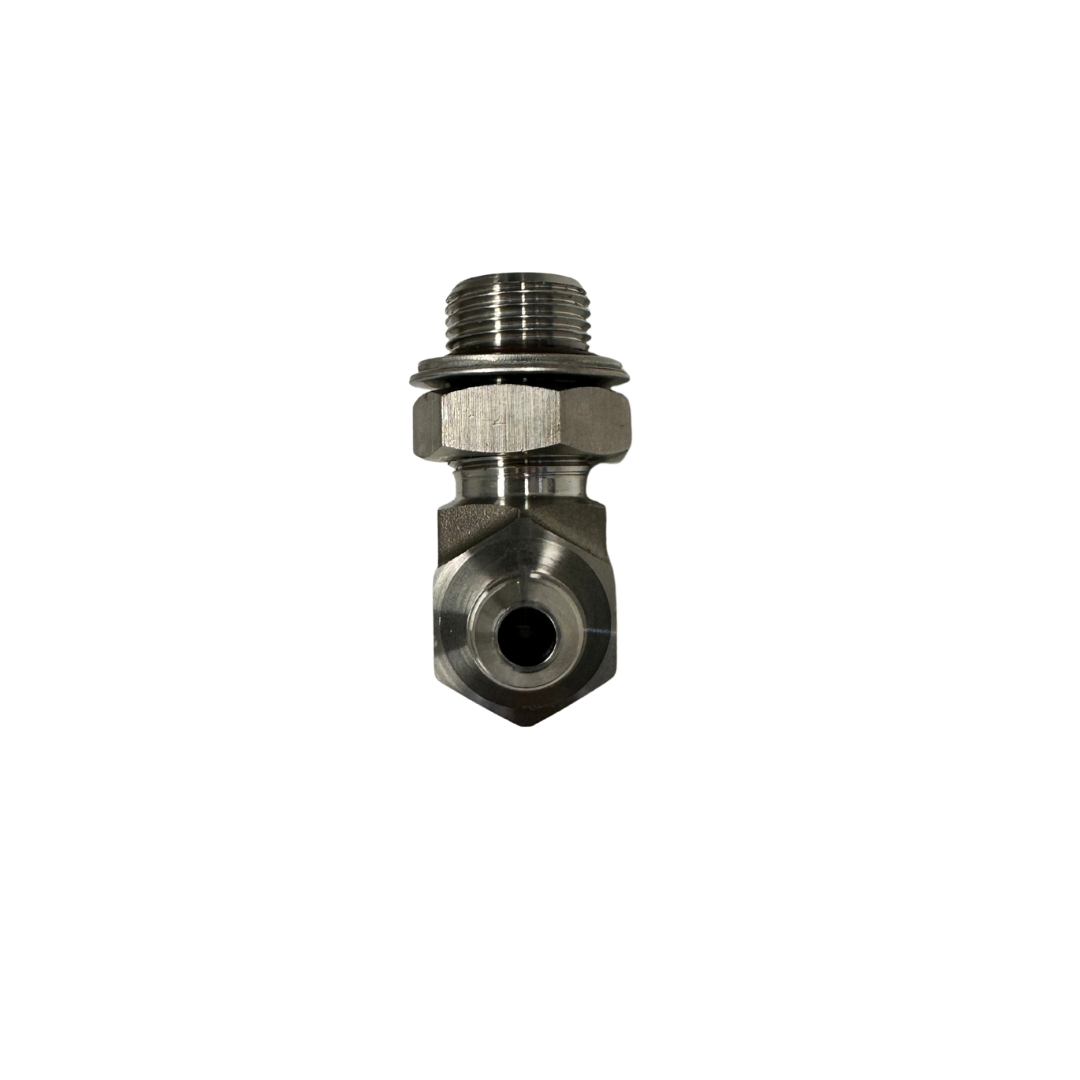

3/8BSPPM - 7/16 JIC Elbow 316 Stainless Steel Fitting

3/8" BSPP Male x 7/16" JIC Male Elbow Adaptor | 90°/45° Hydraulic Fitting

3/8" BSPP Male to 7/16" JIC Male Elbow – Adjustable Hydraulic Adaptor (90° & 45°)

The 3/8" BSPP M x 7/16" JIC elbow connects a BSPP male port to a 7/16 JIC available in 90-degree. The adjustable locknut on the BSPP end lets you set the correct orientation before tightening, making it easy to route hoses around tight spaces or fixed components.

Key Features & Technical Specifications

• BSPP End: 3/8" male, parallel thread with an adjustable locknut and washer/seal for directional alignment (bonded seal, soft seal, or cutting face options)
• JIC End: 7/16" male thread, commonly known as a Dash 04 (-04) JIC 37° flare
• Angle Options: 90-degree elbow configurations
• Material: 316 Stainless Steel suited for high-pressure hydraulic fluid applications
• Sealing Mechanism: JIC end seals via a metal-to-metal 37° cone flare; BSPP end seals via an external washer or O-ring at the port face
