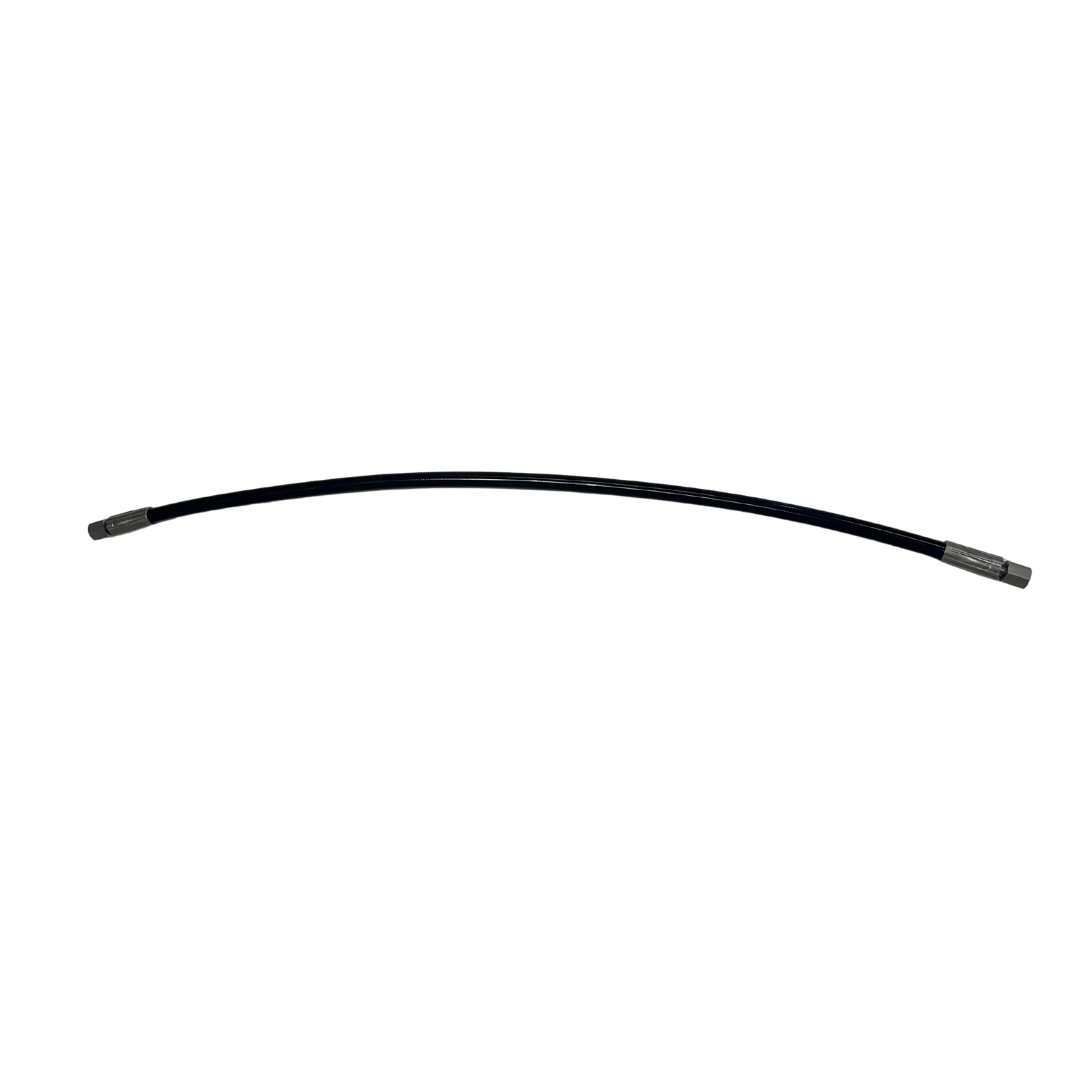

Hydraulic Hose 7/16" JIC Female Fittings

7/16 JIC F 600mm R7 Hydraulic Hose | SAE 100R7 Thermoplastic Assembly

7/16" JIC Female Swivel x Female Swivel Hydraulic Hose – 600mm, SAE 100R7 Thermoplastic

The 7/16 JIC F 600mm R7 hydraulic hose with 7/16 JIC female swivel fitting on both ends. This female-to-female configuration makes it a ready-to-install, straight-swap replacement line for technicians and fleet maintenance teams who need a precision-cut 600mm hydraulic hose without additional adapters.

Key Features & Technical Specifications

• Hose Standard: SAE 100R7 medium-pressure thermoplastic hydraulic hose
• Construction: Polyester inner tube reinforced with synthetic fiber braid, wrapped in an abrasion-resistant polyurethane outer cover
• Length: 600mm (0.6 meters), measured end-to-end or seat-to-seat
• Fitting Type (both ends): JIC female swivel (37° flare seat)
• Configuration: Female JIC swivel x Female JIC swivel (FxF)
